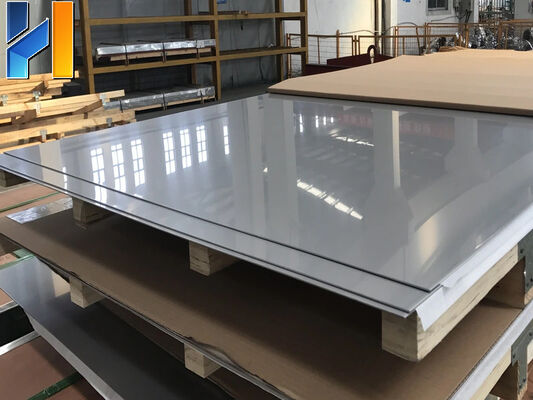

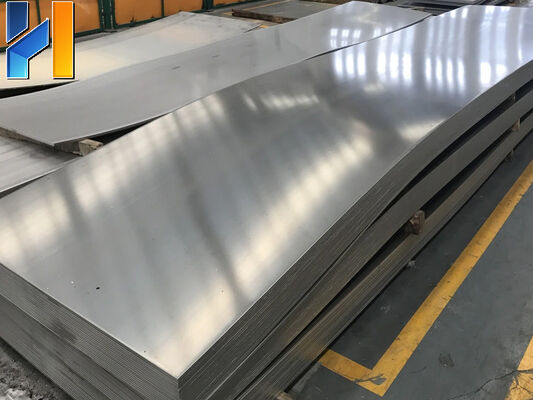

310S Grade Stainless Steel Sheet with Strong Corrosion Resistance and Customizable Dimensions
商品の詳細
| 幅 | 100mm | 2000mm | 厚さ | 0.2mm～100mm |
|---|---|---|---|
| 厚さの耐性 | +/-0.01mm | 表面仕上げ | 2B、BA、8Kミラー、絞りHL、Nチタンメッキ、エッチング、エンボス |
| エッジタイプ | ミルエッジ、スリットエッジ | 製造技術 | コールドロール /ホットロール |
| 炭素含有量 | ≤0.03 | マンガンの内容 | ≤2.0 |
| リン含有量 | ≤0.03 | 硫黄分 | ≤0.02 |
| シリコン含有量 | ≤0.80 | クロムの内容 | 21.0-230 |
| ニッケル含有量 | 23.0～25.0 | モリブデン含有量 | 2.5-3.5 |
| UNS番号 | N08904 | ||
| ハイライト | 310S Grade Stainless Steel Sheet,Strong Corrosion Resistance Stainless Steel Sheet,Customizable Dimensions Stainless Steel Plate |
||
製品の説明
Premium Stainless Steel Sheets
Engineered for superior performance and durability, our stainless steel sheets are manufactured to meet the highest industry standards. Available in various grades and customizable dimensions, they offer exceptional corrosion resistance and aesthetic appeal for a wide range of demanding applications.
- Exceptional Corrosion Resistance
- High Strength and Durability
- Versatile Applications
- Customizable Dimensions
- Premium Surface Finishes
Ideal For: Construction, Shipbuilding, Railway Stations, Interior & Exterior Decoration, Medical Equipment, Food Industry, Tableware, Chemical Industry, and more.
Product Specifications
Brand
Not Specified
Origin
Not Specified
Material
Stainless Steel
Color
Metallic Silver (Various Finishes Available)
Standard Length
Custom
Standard Width
1219mm or Custom
Thickness Range
0.3mm - 3mm (Base Description) / 0.2mm - 100mm (Technical Data)
Packaging
Standard Seaworthy Package - Wooden Pallet
MOQ
0
Technical Specifications
General Specifications
| Name | Standard | Width | Thickness | Thickness/Width Tolerance | Length | Surface | Edge | Technique | Application | Package | Advantage |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Stainless Steel Sheet | ASTM/ASME 240/480, JIS 4305, DIN EN 10088-2 | 100mm ~ 2000mm | 0.2mm ~ 100mm | +/-0.01mm | Customer's Requirement | 2B, BA, 8K Mirror, Drawing HL, N Titanium plating, Etching, Embossing | Mill Edge, Slit Edge | Cold Rolled / Hot Rolled | Medical equipment, Food industry, Table-wares, Construction, Kitchen utensils, Chemical industry | Standard Seaworthy Package--wooden Pallet | Strong Corrosion Resistance |
Chemical Composition and Properties
Grade 301 (UNS S30100)
| UNS | ASTM | EN | JIS | C% | Mn% | P% | S% | Si% | Cr% | Ni% | Mo% |
|---|---|---|---|---|---|---|---|---|---|---|---|
| S30100 | 301 | 1.4319 | SUS301 | ≤0.15 | ≤2.00 | ≤0.045 | ≤0.03 | ≤1.00 | 16.0-18.0 | 6.0-8.0 | - |
Grade 304 (UNS S30400)
| UNS | ASTM | EN | JIS | C% | Mn% | P% | S% | Si% | Cr% | Ni% | Mo% |
|---|---|---|---|---|---|---|---|---|---|---|---|
| S30400 | 304 | 1.4301 | SUS304 | ≤0.08 | ≤2.00 | ≤0.045 | ≤0.03 | ≤0.75 | 18.0-20.0 | 8.0-10.5 | - |
Grade 304L (UNS S30403)
| UNS | ASTM | EN | JIS | C% | Mn% | P% | S% | Si% | Cr% | Ni% | Mo% |
|---|---|---|---|---|---|---|---|---|---|---|---|
| S30403 | 304L | 1.4306 | SUS304L | ≤0.03 | ≤2.00 | ≤0.045 | ≤0.03 | ≤0.75 | 18.0-20.0 | 8.0-12.0 | - |
Grade 310S (UNS S31008)
| UNS | ASTM | EN | JIS | C% | Mn% | P% | S% | Si% | Cr% | Ni% | Mo% |
|---|---|---|---|---|---|---|---|---|---|---|---|
| S31008 | 310S | 1.4845 | SUS310S | ≤0.08 | ≤2.00 | ≤0.045 | ≤0.03 | ≤1.50 | 24.0-26.0 | 19.0-22.0 | - |
Grade 316 (UNS S31600)
| UNS | ASTM | EN | JIS | C% | Mn% | P% | S% | Si% | Cr% | Ni% | Mo% |
|---|---|---|---|---|---|---|---|---|---|---|---|
| S31600 | 316 | 1.4401 | SUS316 | ≤0.08 | ≤2.00 | ≤0.045 | ≤0.03 | ≤0.75 | 16.0-18.0 | 10.0-14.0 | 2.0-3.0 |
Grade 316L (UNS S31603)
| UNS | ASTM | EN | JIS | C% | Mn% | P% | S% | Si% | Cr% | Ni% | Mo% |
|---|---|---|---|---|---|---|---|---|---|---|---|
| S31603 | 316L | 1.4404 | SUS316L | ≤0.03 | ≤2.00 | ≤0.045 | ≤0.03 | ≤0.75 | 16.0-18.0 | 10.0-14.0 | 2.0-3.0 |
