すべての製品

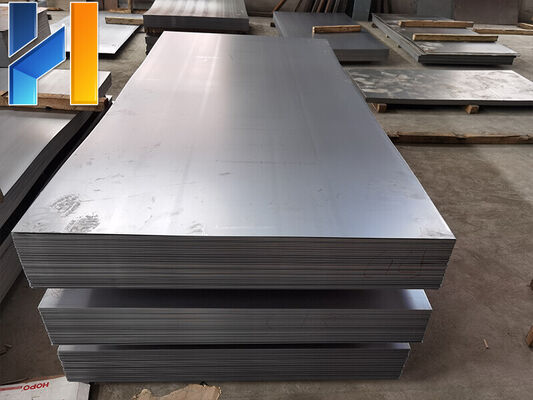

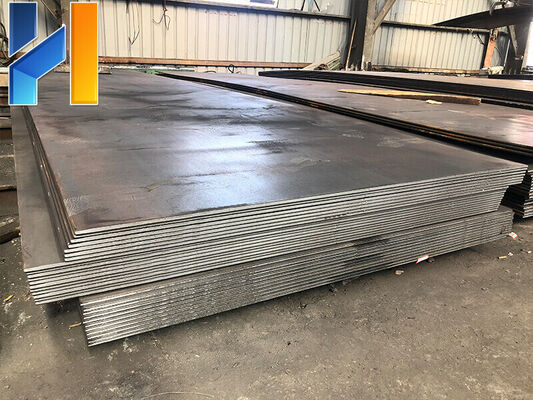

High Strength Carbon Steel Plate and Sheet with 0.15mm-300mm Thickness Available in Cold Rolled and Hot Rolled Options
商品の詳細
| 厚さ | 0.15mm-300mm | 幅 | 1250mmから1500mm |
|---|---|---|---|
| 長さ | 1000mm -12000mm | 技術 | 冷間圧延と熱間圧延 |
| 学年 | Q550NQR1 | 炭素含有量 | 0.12～0.16重量％ |
| シリコン含有量 | 0.75重量% | マンガンの内容 | 2.00重量% |
| リン含有量 | 0.025重量% | 硫黄分 | 0.008重量% |
| 銅含有量 | 0.25～0.55重量％ | クロムの内容 | 0.3～1.25重量％ |
| ニッケル含有量 | 0.65重量% | 微細構造 | パーライト |
| 炭素鋼タイプ | 高炭素鋼 | ||
| ハイライト | High Strength Carbon Steel Plate,0.15mm-300mm Thickness Carbon Steel Sheet,Cold Rolled And Hot Rolled Structural Steel Plate |
||
製品の説明
20Mn / 1022 / SWRCH22K / C22(1.0402) Carbon Steel Plate/Sheet
High-quality carbon steel plates designed for robust structural applications.
Product Overview
Carbon structural steel plate refers to carbon steel containing less than 0.8% carbon. It is characterized by lower sulfur, phosphorus, and non-metallic inclusions compared to general carbon structural steel, resulting in superior mechanical properties. Our plates are engineered for reliability and performance in demanding environments.
Key Features
- Enhanced Durability
- Superior Mechanical Properties
- High Strength-to-Weight Ratio
- Corrosion Resistance
Ideal Applications
Construction, heavy machinery, infrastructure projects, automotive manufacturing, shipbuilding, and general fabrication.
Product Attributes
Brand: N/A
Origin: N/A
Material: Carbon Structural Steel
Color: Mill Finish / As per specification
Packaging: N/A
Technical Specifications
Product Specifications
| Product Name | Standard | Material Grades | Dimensions |
|---|---|---|---|
| Carbon steel sheet / steel plate | JIS, AISI, ASTM, GB, DIN, EN | ASTM: Grade B, Grade C, Grade D, A36, Grade 36, Grade 40, Grade 42, Grade 50, Grade 55, Grade 60, Grade 65, Grade 80 EN: S185, S235JR, S275JR, S355JR, S420NL, S460NL S500Q, S550Q, S620Q, S690Q JIS: SS330, SPHC, SS400, SPFC, SPHD, SPHE |
Thickness: 0.15mm-300mm Width: 1250mm 1500mm or as per client's requirement Length: 1000mm-12000mm or according to customer's special request |
Manufacturing Technique
Cold Rolled And Hot Rolled
Chemical Composition - Primary Elements
| Grade | C | Si | Mn |
|---|---|---|---|
| Cor-ten A | 0.12 | 0.25-0.75 | 0.20-0.50 |
| Cor-ten B | 0.16 | 0.3-0.5 | 0.8-1.25 |
| SPA-H | 0.12 | 0.2-0.75 | 0.60 |
| 9CuPCrNi-A | 0.12 | 0.2-0.75 | 0.20-0.50 |
| Q235NH | 0.13 | 0.10-0.40 | 0.20-0.60 |
| Q295NH | 0.15 | 0.10-0.50 | 0.30-1.00 |
| Q355NH | 0.16 | 0.5 | 0.50-1.50 |
| Q415NH | 0.12 | 0.65 | 1.10 |
| Q460NH | 0.12 | 0.65 | 1.50 |
| Q500NH | 0.12 | 0.65 | 2.0 |
| Q550NH | 0.12 | 0.65 | 2.0 |
Chemical Composition - Secondary Elements
| Grade | P | S | Cu |
|---|---|---|---|
| Cor-ten A | 0.01-0.2 | 0.03 | 0.25-0.55 |
| Cor-ten B | 0.03 | 0.03 | 0.25-0.40 |
| SPA-H | 0.07-0.15 | 0.03 | 0.25-0.55 |
| 9CuPCrNi-A | 0.07-0.15 | 0.040 | 0.25-0.55 |
| Q235NH | 0.03 | 0.030 | 0.25-0.55 |
| Q295NH | 0.03 | 0.030 | 0.25-0.55 |
| Q355NH | 0.03 | 0.030 | 0.25-0.55 |
Carbon Steel Classification
| Carbon Content (wt.%) | Microstructure | Properties | Examples | Standards |
|---|---|---|---|---|
| < 0.25 | Ferrite, pearlite | Low hardness and cost. High ductility, toughness, machinability and weldability | AISI 304, ASTM A815, AISI 316L | Low-carbon steel |
| 0.25 – 0.60 | Martensite | Low hardenability, medium strength, ductility and toughness | AISI 409, ASTM A29, SCM435 | Medium-carbon steel |
| 0.60 – 1.25 | Pearlite | High hardness, strength, low ductility | AISI 440C, EN 10088-3 | High-carbon steel |
